FILTER BELT SCREENS

  • Reverse Dutch Weave Mesh
  • Reverse Dutch Weave Mesh
  • Reverse Dutch Weave Mesh
  • Reverse Dutch Weave Mesh
Reverse Dutch Weave Mesh Reverse Dutch Weave Mesh Reverse Dutch Weave Mesh Reverse Dutch Weave Mesh

Reverse Dutch Weave Mesh

  • Mesh : 260/40 ,132/17,150/24 etc
  • Height : 80mm, 83mm,97mm,110mm,120mm,130mm,145mm,150mm,157mm ,etc
  • Length : 10m, 20m,30m, 35m etc
  • Use : Filter belt screen
  • Description: One constant belt bear tremendous force into plastic extruder screen machine
  • INQUIRY   EMAIL

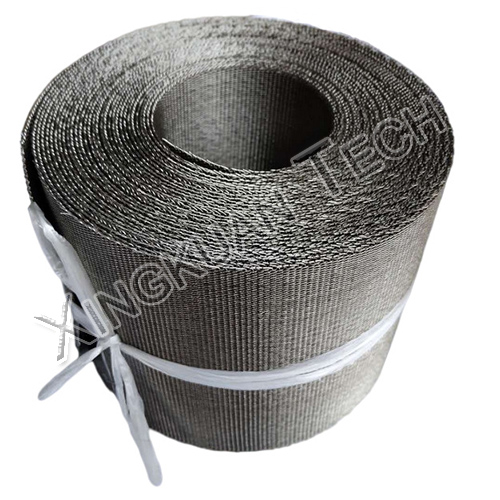

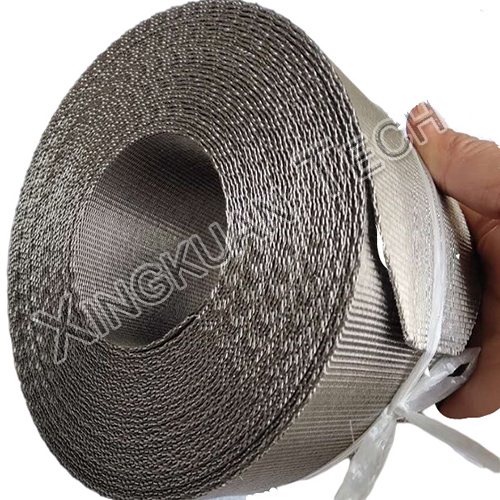

Xingkuan  has manufactured reverse dutch weave mesh for more than 20 years and we have vast  of stock to meet urgent reqquest in quick shipment. Reverse Dutch Weave is the thicker warp wires and less weft wires.Reverse dutch weave mesh is one constant belt bear tremendous force into extruder screen machine .

Specification

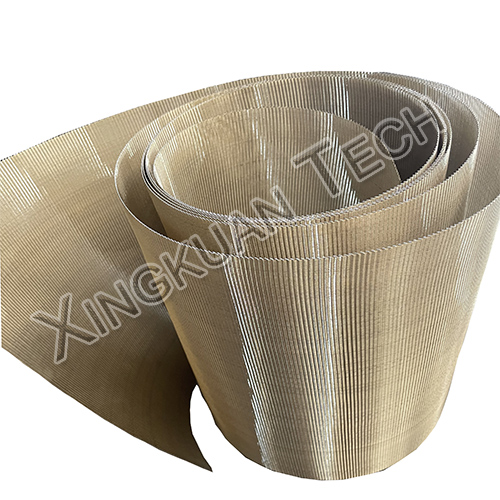

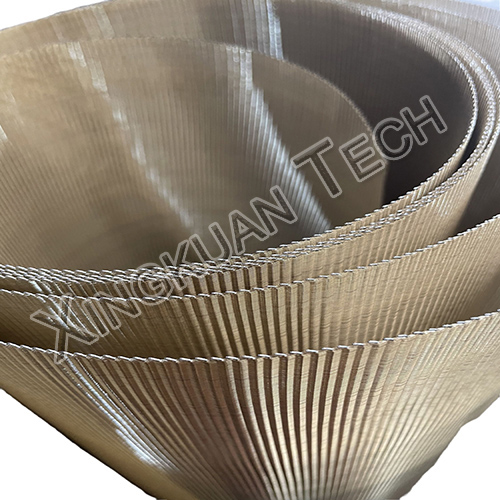

Material: Stainless Steel 302,304,316,316L or Copper Clad Steel with low carbon steel wire
Mesh Count: 72 X 15 110x15  132 X 14 132 X 17 150 X 17 152 X 24 152 X 30 260 X 40,etc
Width: 97mm,108mm,110mm,120mm,127mm,130mm,133mm,138mm,150mm308mm,etc
Length:(stainless steel ) 10 - 30 meters or (copper clad steel ) 50-80 meters

Feature
Automatic belt filter mesh has the resistance to acid,soda,corrosion,high temperature etc;
It is produced by reverse dutch weave,so it has greater strength to support for greater loads in filtration;
With reverse dutch weave,the ribbon filter belt has precision mesh size to effect good filtration in extrusion.

Application

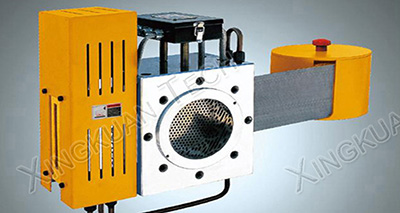

Reverse dutch weave mesh is fitted inside the screen changer component, allowing uninterrupted production and high filtering performance in Blown and Cast film sheet line, Compounding, Pipe Extrusion, Multilayer Plant and Tape plant having an inbuilt pressure sensor mechanism.

Mesh Size

Wire diameter

Fineness filtering

Weight

Width

Length

(warp/inch × weft/inch)

(mm)

(micron)

(kg/m2)

(mm)

(m)

48 × 10

0.5x0.5

400

3.63

60-420

10-40(80)

63 × 18

0.4x0.60

220

4.14

60-420

10-40(80)

72 × 15

0.45x0.55

250

4.78

60-420

10-40(80)

100 × 16

0.35x0.45

190

3.87

60–420

10-40(80)

107 × 20

0.24x0.60

210

3.34

60-420

10-40(80)

120 × 16

0.35x0.45

180

4.49

60-420

10-40(80)

132 × 17

0.32x0.45

170

4.24

60-420

10-40(80)

152 × 24

0.27 × 0.4

160

3.73

60–420

10-40(80)

160 × 17

0.27 ×0.45

160

2.02

60-420

10-40(80)

170 × 18

0.27 ×0.45

160

4.01

60-420

10-40(80)

171 × 46

0.15x0.30

130

2

60-420

10-40(80)

180 × 20

0.27x0.45

170

4.29

60–420

10-40(80)

200 × 40

0.17x0.27

120

2.17

60-420

10-40(80)

240 × 40

0.15x0.25

70

1.98

60-420

10-40(80)

260 × 40

0.15x027

55

2.19

60-420

10-40(80)

290 × 76

0.09x0.19

40

1.27

60-420

10-40(80)

300 × 40

0.15x0.25

50

2.31

60–420

10-40(80)

300 × 80

0.15 × 0.2

35

2.49

60-420

10-40(80)

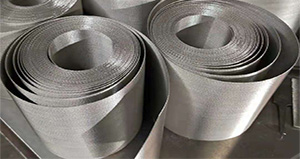

A vast stock in all size can assure we arrange the quick shipment to our clients to meet urgent market demand .

Other material or size ,kindly contact us directly to info@wiremeshmadeinchina.com or call us Today ,Please !
