Extruder Wire Screen

  • Stainless Steel Continuous belt screen
  • Stainless Steel Continuous belt screen
  • Stainless Steel Continuous belt screen
  • Stainless Steel Continuous belt screen
Stainless Steel Continuous belt screen Stainless Steel Continuous belt screen Stainless Steel Continuous belt screen Stainless Steel Continuous belt screen

Stainless Steel Continuous belt screen

  • Mesh counting : 260/40 ,132/17,150/24 etc
  • Roll Height : 80mm, 83mm,97mm,110mm,120mm,130mm,145mm,150mm,157mm ,etc
  • Roll Length : 10m, 20m,30m, 35m etc
  • Apllication : Filter
  • Description: Continuous belt screen is widely used for plastic extrusion and melt filtration in plastic industry ( PP, PS, PVC, PET, PE, ABS, PMMA )in belt style which are eqipped with continuous screen change
  • INQUIRY   EMAIL

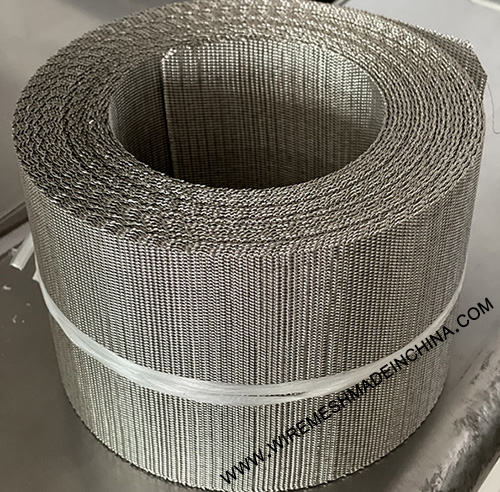

SS Continuous belt screen

Specifications :


1.Material :Stainless steel (302,304,304A,316,316L etc)

2. Popular Width :83mm , 97mm,100mm,110mm,117mm ,130mm,133mm,150mm ,200mm,400mm etc

3. Standard Length:8m,10m,20m,30m,35m,40m,etc

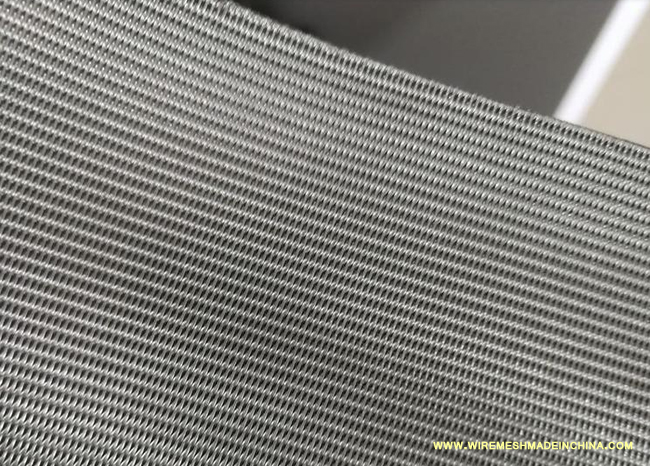

4. Weaving pattern :Revese Dutch Weave (RDW  ) in Plain & Twill  .

5. Popular Size :

Mesh Size Wire diameter Fineness of Weight Width Length
(mm) filtering
(warp/inch × weft/inch) (kg/m2) (mm) * (m)

(warp × weft) (micron)


48 × 10 0.5x0.5 400 3.63 40–210 10,000
63 × 18 0.4x0.60 220 4.14 40–210 10,000
72 × 15 0.45x0.55 250 4.78 40–210 10,000
100 × 16 0.35x0.45 190 3.87 40–210 10,000
107 × 20 0.24x0.60 210 3.34 40–210 10,000
120 × 16 0.35x0.45 180 4.49 40–210 10,000
132 × 17 0.32x0.45 170 4.24 40–210 10,000
152 × 24 0.27 × 0.4 160 3.73 40–210 10,000
160 × 17 0.27 ×0.45 160 2.02 40–210 10,000
170 × 18 0.27 ×0.45 160 4.01 40–210 10,000
171 × 46 0.15x0.30 130 2 40–210 10,000
180 × 20 0.27x0.45 170 4.29 40–210 10,000
200 × 40 0.17x0.27 120 2.17 40–210 10,000
240 × 40 0.15x0.25 70 1.98 40–210 10,000
260 × 40 0.15x027 55 2.19 40–210 10,000
290 × 76 0.09x0.19 40 1.27 40–210 10,000
300 × 40 0.15x0.25 50 2.31 40–210 10,000
300 × 80 0.15 × 0.2 35 2.49 40–210 10,000
we have too many size , above is just one part . we can do customerized

Applications :

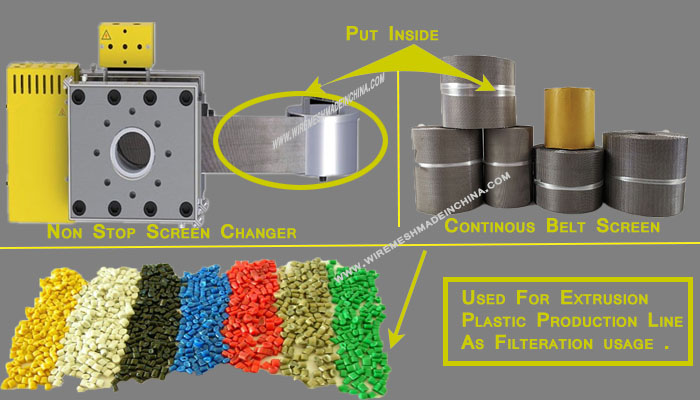

  • widely euipped into continuous belt style screen changers ,together being used for plastic extrusion and melt filtration in plastic industry for PP, PS, PVC, PET, PE, ABS, PMMA .
  • Filter candles, vacuum filters and spring filters(as filter media in filtration process )

  • mainly used for filtering cast film and blown film, compounding, resin production, nonwovens and specialty materials.

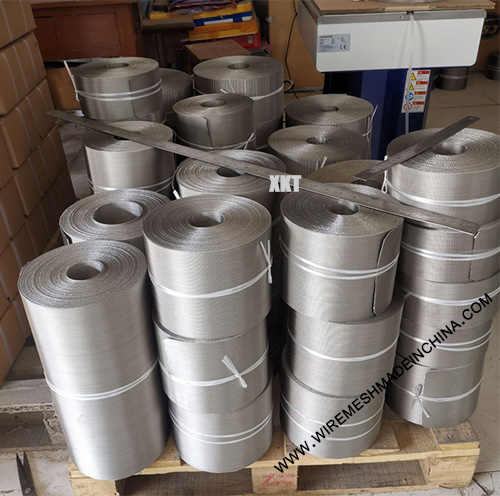

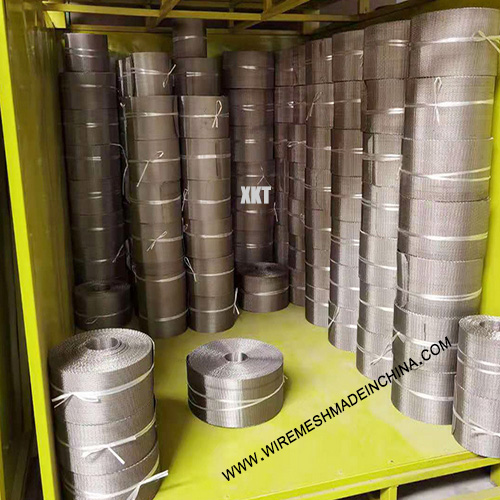

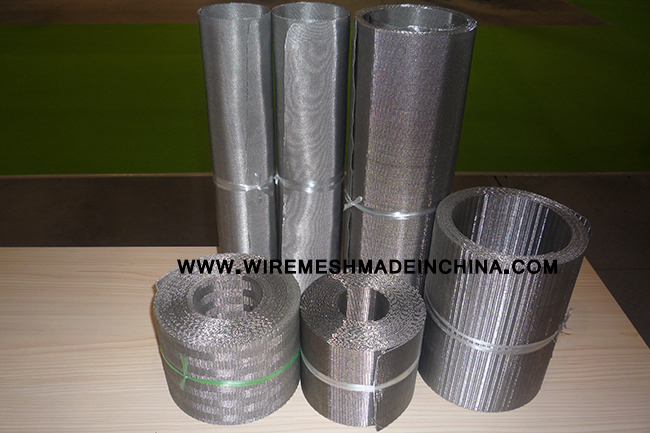

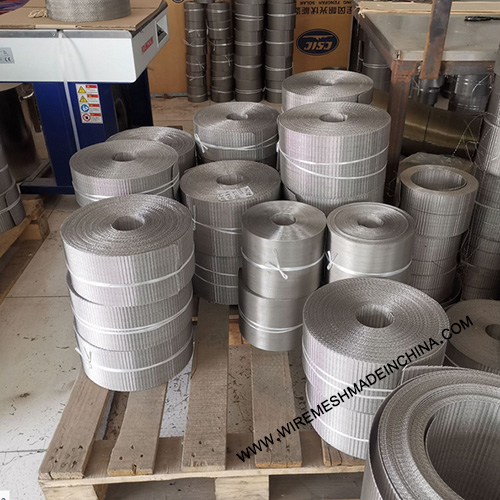

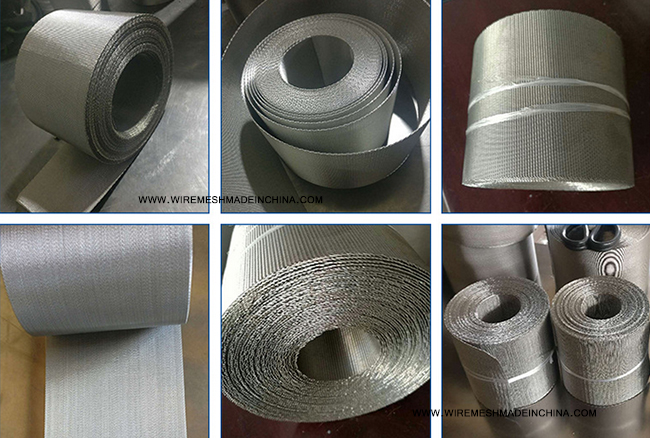

Photo Show :
