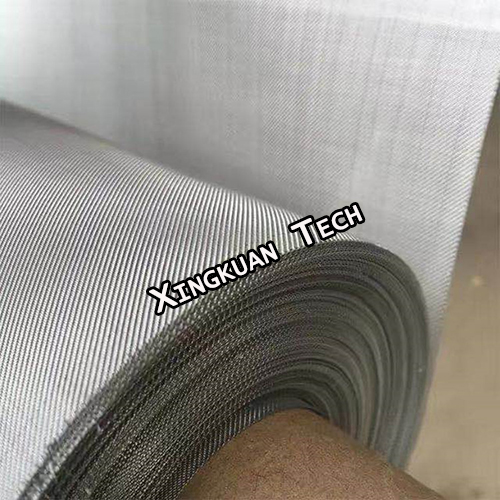

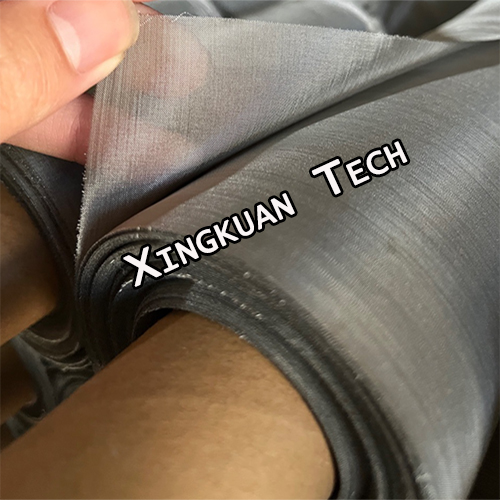

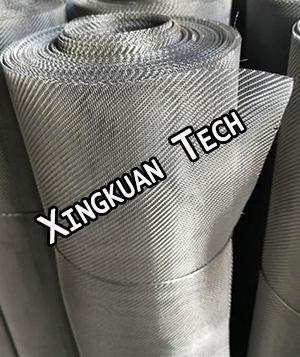

Molded Pulp Wire Mesh

Material :D667 metal wire
Mesh : 40,50,60,70,80,100,120etc
Wire diameter : 0.15mm,0.17mm,0.19mm,0.21mm,0.22mm,0.25mm,etc

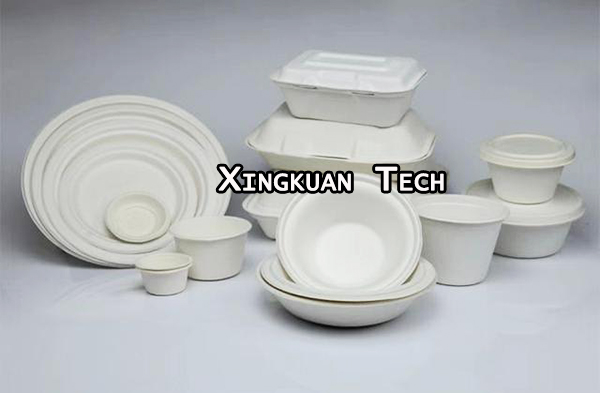

Applications : used for Molded Pulp tableware
Description: Molded Pulp Wire Mesh
INQUIRY EMAIL

Hebei Xingkuan Wire Mesh Tech company is one professional molded pulp wire mesh supplier in china .We are committed to solving the problem of wire mesh for customers in process of tableware. For each type of tableware box, we need to choose the correct wire mesh. After years of production experience and helping customers solve problems, we continuously debug and have six main weaving methods, different weaving methods, and corresponding wire diameters to better ensure mesh not easily break, minimize losses, reduce costs, increase service life, and improve the quality of the final product.

Specifications :

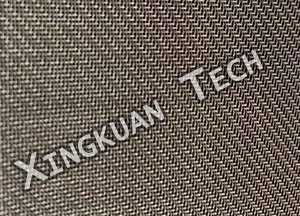

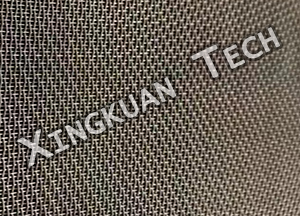

Woven Patterns :

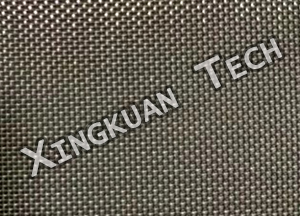

No.1
Mesh	Wire Diameter	Width	Length
40	0.19mm	1.2m	30m
40	0.19mm	1.3m	30m
50	0.19mm	1.3m	30m

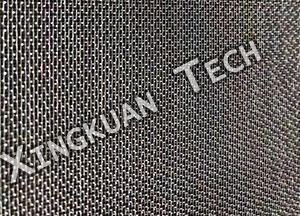

No.2
Mesh	Wire Diameter	Width	Length
40	0.15mm	1.2m	30m
40	0.17mm	1.2m	30m
40	0.19mm	1.2m	30m
40	0.19mm	1.3m	30m
40	0.21mm	1.2m	30m
40	0.21mm	1.3m	30m
40	0.23mm	1.2-1.6m	30m
40	0.25mm	1.2m	30m
60	0.15mm	1.2m	30m

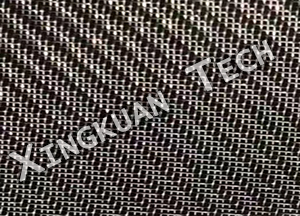

No.3-1P
Mesh	Wire Diameter	Width	Length
40	0.17mm	1m	30m
40	0.18mm	1m	30m
40	0.19mm	1m	30m
40	0.21mm	1m	30m
40	0.22mm	1m	30m
50	0.18mm	1m	30m
50	0.20mm	1m	30m
50	0.22mm(imported wire )	1m	30m
60	0.15mm	1m	30m
70	0.13mm	1m	30m
80	0.12mm	1m	30m
100	0.10mm	1m	30m
120	0.08mm	1m	30m
No.3-2T
Mesh	Wire Diameter	Width	Length
40	0.17mm	1m	30m
40	0.19mm	1m	30m
40	0.21mm	1m	30m
50	0.22mm(imported wire )	1m	30m
60	0.15mm	1m	30m
70	0.13mm	1m	30m
80	0.12mm	1m	30m
No.4
Mesh	Wire Diameter	Width	Length
40	0.15mm	1.2	30m
40	0.17mm	1.2m	30m
40	0.19mm	1.2m	30m
40	0.21mm	1.2m	30m
40	0.23mm	1.4m	30m
No.5
Mesh	Wire Diameter	Width	Length
40	0.15mm	1.2	30m
40	0.17mm	1.2m	30m
40	0.19mm	1.2m	30m
40	0.21mm	1.2m	30m
40	0.23mm	1.4m	30m
No.6
Mesh	Wire Diameter	Width	Length
40	0.19mm	1.2m	30m
40	0.21mm	1.2m	30m

Applications :

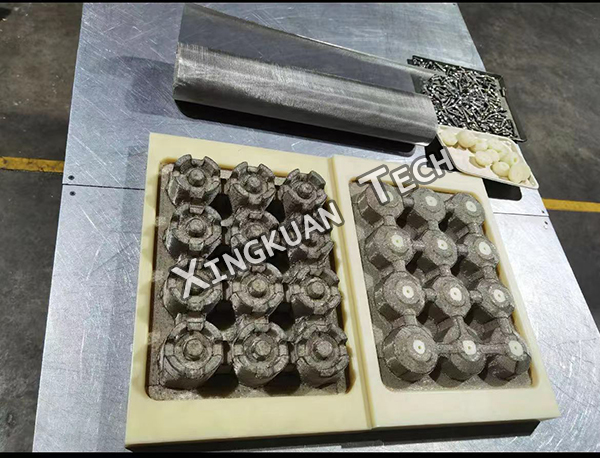

molded pulp and fiber goods

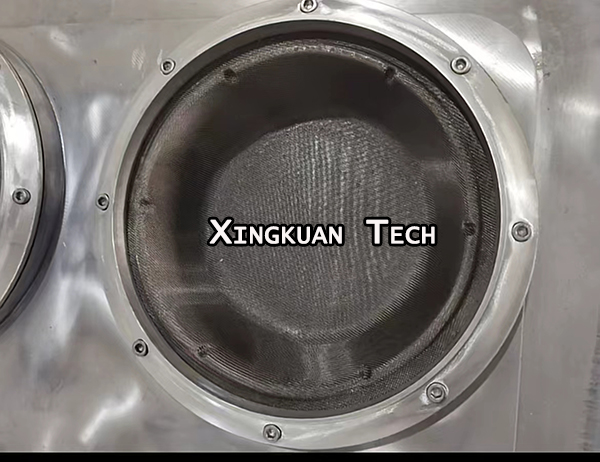

the wire mesh molds used on the metallic dies, endure accelerated wear and tear.
No.1 Mesh -weaving method is suitable for most tableware box .
No.2 Mesh - is relatively soft and has a higher diagonal stretching rate on one side
No.3 Mesh-subjected to vacuum stress relief heat treatment,widely used in the dry pressing and molding process of work packages.
No.4 Mesh -very soft and has a strong stretching rate, making it suitable for making water cups
Deep bowls or structurally complex tableware and simple work package mixed pressure products.
No.5 Mesh-Large Twill pattern, divided into front and back sides ,The front mesh is very delicate, while the back is very rough,Stronger unilateral elongation than No.4 mesh. apply for products with complex and deep structure

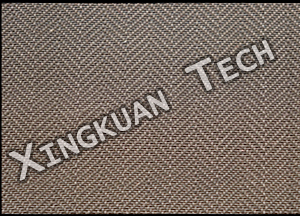

No.6 Mesh -This weaving method is tighter than the No.1 mesh, and it is divided into left and right slanted sides, forming a "human" shape pattern. Most tableware can be used.
